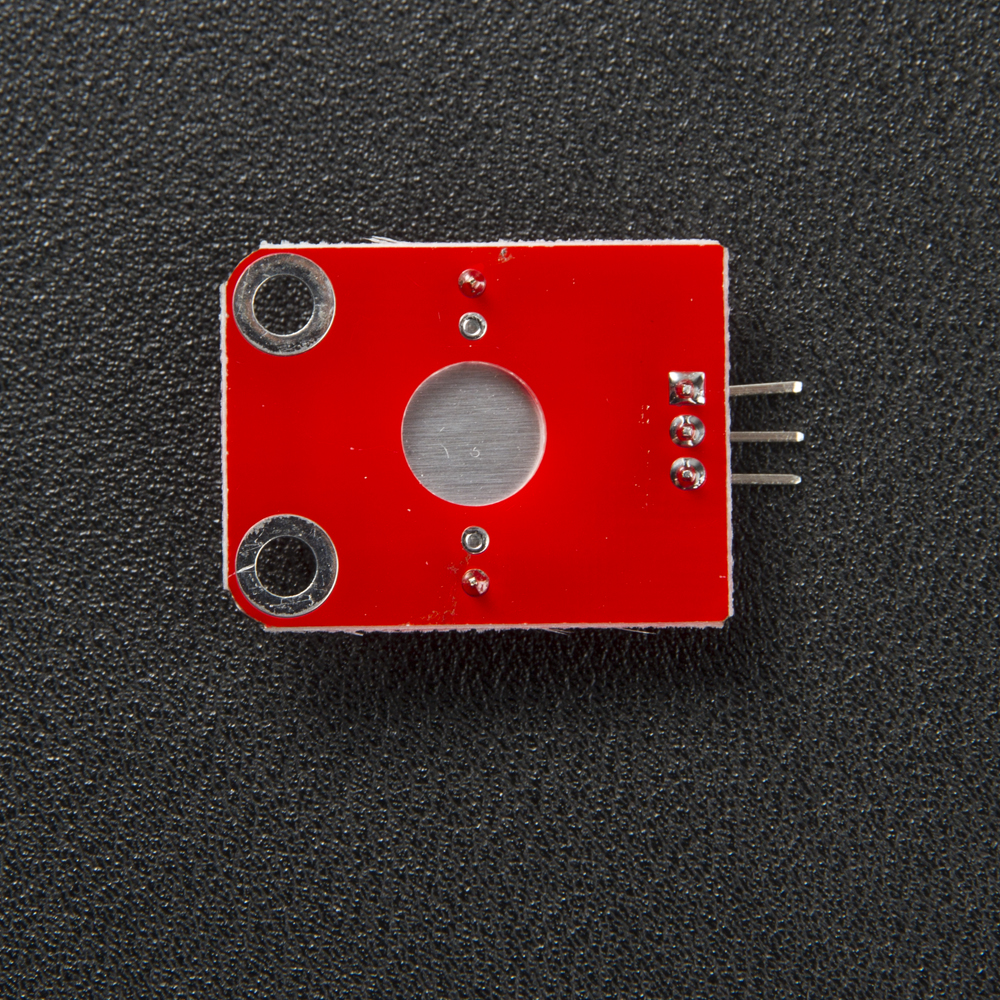

3W 200 Lumen LED Module

1. Instructions

   This is a 3W 200 Lumen LED module that controlled by Arduino board via PWM pin.

Specification:

•    Color Temperature: Warm White 3000-3200K / white 6000-6500K
•    Forward Current: 700MA
•   Luminous flux: White 180-200LM (lumens)
•   Forward Voltage :3.3-3 .6 V
•   Reverse voltage: 5V
•   Power: 3W
•   Viewing angle: 180 degrees
•   Working temperature: -20-60 degrees
•   Storage temperature :20-60 degrees
•   Brightness attenuation: 3% after 5000 hours
•    Life: 50,000 hours

2. Pin Instruction

3.Example

Here is a example for this module, we control the brightness via Pin9,which output a PWM signal.

The connection as below:

                   “G”=======Gnd

                   “+”=======5V

                   “S”=======9

int brightness = 0;
int fadeAmount = 5;
void setup()  {

  pinMode(9, OUTPUT);
}

void loop()  {

  analogWrite(9, brightness);
  brightness = brightness + fadeAmount;
  if (brightness == 0 || brightness == 255) {
    fadeAmount = -fadeAmount ;
  }

  delay(30);
}
